Photon

Photon portable gas analyzer

Photon is a state-of-the-art gas analyser. It is a class of its own, equipped with up to 6 NDIR sensors, supplemented with up to 3 electrochemical cells. Large, colourful VGA display for data presentation. Compact-flash disk for results (stored in a database form). All administered by PC-104 industrial class computer with Windows CE operating system.
Photon paired with the most efficient gas conditioner creates fully professional gas analysing system that meets the most rigorous requirements and criteria.
Recommend for all those who appreciate the most: quality and performance.

BROCHURE | DOWNLOADS

Main features

  • Double thermal stabilisation: stabilisation of entire casing and of each NDIR sensor separately - such approach provides the best thermal stabilisation (accuracy to 0.01°C), short warm up time (30 ÷ 60min) and the best accuracy of the NDIR sensors
  • Up to 6 NDIR sensors, up to 3 electrochemical cells
  • Paired up with professional gas conditioner - PGD-100
  • Large - 6.4”, high-resolution - VGA (640x480) colourful display with touch-pad
  • PC-104 industrial class computer with Windows CE operating system
  • Advanced algorithms to control analyser's work, like warming up, compensation of cross-sensitivity values, response time - all which influence the quality and performance.
  • Measurement of many additional parameters: temperatures (ambient, gas), pressures (atmospheric, differential), flow velocity (with help of Pitot tube), flow control through device and more
  • Calculation of all combustion parameters like: stack loss, combustion efficiency,excess air coefficient, dew point temperature, and more
  • Communication with PC computer via RS232C and Ethernet interfaces
  • 2x USB port for connecting commercial peripherals (mice, keyboards) and Photon add-ons (analogue outputs / inputs)
  • Optional add-ons: analogue outputs (8-channels), analogue inputs (8-channels) modules
  • Optional portable printer
  • Results stored in database - possibility to view entire measurement session in graphical form, create measurement reports, export data to csv files, and more
  • Database for customers and objects informations

Complete and ready to operate Photon analyser

1_1

Front panel view

1_2

Gas and electric connectors

1_3

Example screens

1_4

1. General parameters

Dimensions (W x H x D) 500mm x 395mm x 173mm
Weight 14kg ÷ 18kg
Casing's material Plywood covered with aluminium
Protection grade IP20
Operating conditions T: 10°C ÷ 50°C, RH: 5% ÷ 90% (non-condensing)
Storing temperature -20°C ÷ +55°C
Power supply: input | maximal power consumption 115 or 230VAC | 150W
Operating system Windows CE 5.0
Display 6.4” VGA (640x480)
Data storage: type | capacity Compact Flash card | max. 4GB
Interface for external devices (USB disk, mouse, keyboard) 2x USB
Communication interface with PC computer RS-232C, RJ45 (Ethernet)
Warming up time 90min max
Warming up temperature About 18°C above ambient temperature
Maximum outside temperature drift that does not affect warming up temperature ±5°C

2. Measurements of gas components

Table below shows the combination of all sensors/ranges. Please mind that the maximum possible gas sensors number in a device is 6 NDIR and 3 EC – see ordering guide.

Component Method Range | resolution Accuracy Time (T90) Conformity
O2 – Oxygen Electrochemical sensor 20.95% | 0.01% ± 0.2% abs. or 5% rel. 45 sec ISO 12039,
CTM-030
O2 – Oxygen Electrochemical,
partial pressure
20.95% | 0.01% ± 0.2% abs. or 5% rel. 45 sec ISO 12039,
CTM-030
O2 – Oxygen Electrochemical,
partial pressure
25% | 0.01% ± 0.2% abs. or 5% rel. 45 sec ISO 12039,
CTM-030
O2 – Oxygen Electrochemical,
partial pressure
100% | 0.1% ± 0.2% abs. or 5% rel. 45 sec ISO 12039,
CTM-030
O2 – Oxygen Paramagnetic sensor 25% | 0.01% ± 0.1% abs. or 3% rel. 45 sec EN 14789, OTM-13
O2 – Oxygen Paramagnetic sensor 100% | 0.1% ± 0.1% abs. or 3% rel. 45 sec EN 14789, OTM-13
CO – Carbon monoxide NDIR 20 000ppm | 1ppm ± 3ppm abs. or 3% rel. 45 sec EN 15058, Method 10
CO – Carbon monoxide NDIR 10% | 0.01% ± 0.03% abs. or 3% rel. 45 sec EN 15058, Method 10
CO – Carbon monoxide NDIR 100% | 0.1% ± 0.3% abs. or 3% rel. 45 sec EN 15058, Method 10
CO2 – Carbon dioxide NDIR 5% | 0.01% ± 0.03% abs. or 3% rel. 45 sec ISO 12039, OTM-13
CO2 – Carbon dioxide NDIR 25% | 0.01% ± 0.03% abs. or 3% rel. 45 sec ISO 12039, OTM-13
CO2 – Carbon dioxide NDIR 100% | 0.1% ± 0.3% abs. or 3% rel. 45 sec ISO 12039, OTM-13
CH4 – Methane NDIR 5% | 0.01% ± 0.03% abs. or 3% rel. 45 sec
CH4 – Methane NDIR 25% | 0.01% ± 0.03% abs. or 3% rel. 45 sec
CH4 – Methane NDIR 100% | 0.1% ± 0.3% abs. or 3% rel. 45 sec
NO – Nitric oxide NDIR 1 000ppm | 1ppm ± 3ppm abs. or 3% rel. 45 sec ISO 10849, Method 7E
NO – Nitric oxide NDIR 5 000ppm | 1ppm ± 3ppm abs. or 3% rel. 45 sec ISO 10849, Method 7E
NO2 – Nitrogen dioxide NDIR 1 000ppm | 1ppm ± 3ppm abs. or 3% rel. 45 sec ISO 10849, Method 7E
NO2 – Nitrogen dioxide Electrochemical sensor 1 000ppm | 1ppm ± 5ppm abs. or 5% rel. 60 sec CTM-022
SO2 – Sulphur dioxide NDIR 1 000ppm | 1ppm ± 3ppm abs. or 3% rel. 45 sec ISO 7935, Method 6C
SO2 – Sulphur dioxide NDIR 5 000ppm | 1ppm ± 3ppm abs. or 3% rel. 45 sec ISO 7935, Method 6C
H2S – Hydrogen sulfide Electrochemical sensor 1 000ppm | 1ppm ± 5ppm abs. or 5% rel. 70 sec
H2 – Hydrogen Electrochemical sensor 2 000ppm | 1ppm ± 10ppm abs. or 5% rel. 50 sec
H2 – Hydrogen Electrochemical sensor 20 000ppm | 1ppm ± 10ppm abs. or 5% rel. 70 sec
H2 – Hydrogen Thermal Conductivity Detector 10% | 0.1% ± 0.5% abs. or 5% rel. 45 sec
H2 – Hydrogen Thermal Conductivity Detector 25% | 0.1% ± 0.5% abs. or 5% rel. 45 sec
H2 – Hydrogen Thermal Conductivity Detector 50% | 0.1% ± 0.5% abs. or 5% rel. 45 sec
H2 – Hydrogen Thermal Conductivity Detector 100% | 0.1% ± 0.5% abs. or 5% rel. 45 sec
N2O – Nitrous oxide NDIR 2 000ppm | 1ppm ± 3ppm abs. or 3% rel. 45 sec ISO 21258
CHF3 – Fluoroform (Refrigerant R23) NDIR 2.5% | 0.01% ± 0.03% abs. or 3% rel. 45 sec
VOC - Volatile Organic compounds PID - Photo Ionization Detector 100ppm | 1ppm ± 5ppm abs. or 5% rel. 120 sec Method 21
VOC - Volatile Organic compounds PID - Photo Ionization Detector 1 000ppm | 1ppm ± 5ppm abs. or 5% rel. 120 sec Method 21

3. Other measurements / calculated results

Variable Method Range | resolution Accuracy Time (T90)
Tgas – gas temperature K-type thermocouple -10 ÷ 1000°C | 0.1°C ± 2°C 10 s
Tgas – gas temperature S-type thermocouple -10 ÷ 1500°C | 0.1°C ± 2°C 10 s
Tamb – boiler intake air temperature PT500 resistive sensor -10 ÷ 100°C | 0.1°C ± 2°C 10 s
Differential pressure Silicon piezoresistive pressure sensor -25hPa ÷ +25hPa | 1Pa (0.01hPa) ± 2Pa abs. or 5% rel. 10 s
Gas flow velocity Indirect, with Pitot tube & pressure sensor 1 ÷ 50m/s | 0.1m/s 0.3m/s abs. or 5% rel. 10 s
Lambda λ – excess air number Calculated 1 ÷ 10 | 0.01 ± 5% rel. 10 s
qA – stack loss Calculated 0 ÷ 100% | 0.1% ± 5% rel. 10 s
Eta η – combustion efficiency Calculated 0 ÷ 120% | 0.1% ± 5% rel. 10 s
IL – incomplete combustion Calculated 0 ÷ 100% | 0.01% ± 5% rel. 10 s

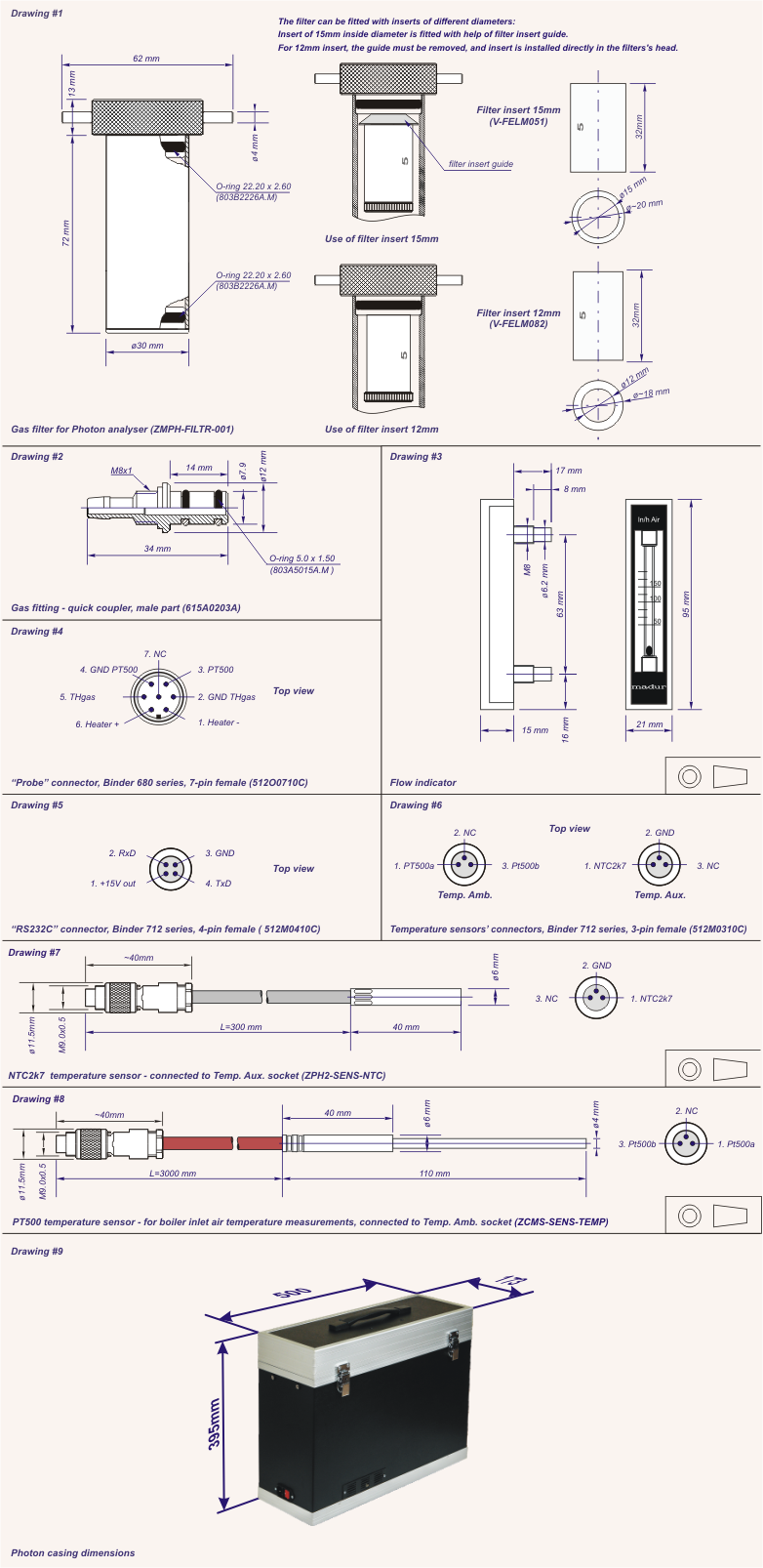

Drawings

2_1

Hereby tool helps to configure, in few simple steps, ready to measure analyser. It allows to select main structural components, like gas dryer, gas sensors, etc. Some elements, like probe pipes are to be selected separately. This mini-configurator, generates a list of madur codes that identifies the selected configuration. Customer may add own comments and requests. Device configuration has to be verified by pressing the Refresh button in the Order Summary section. Order summary can be send to our sale engineers for validation and in order to obtain price offer.


Presenting prices principles

Analyser’s standard equipment supplied along with the device.

  • 3m mains cable (with selectable plug type)
  • Single gas filter with condensate trap and filter insert (pore size 5µm)
  • Ambient temperature sensor with 300mm cable
  • 2.5m RS-232C communication cable with DB9 female connector
  • Software CD with programs and manuals
  • Quick coupling for the probe holder (3pc)
  • Photon ↔ PGD-100 electric communication cable
  • Photon ↔ PGD-100 gas hose connection

Optional equipment & spare parts

PGD 100 Gas conditioner

4_1

THIS ELEMENT IS ORDERED SEPARATELY, YET IT IS ESSENTIAL TO WORK WITH ANALYSER!
Photon analyser “cares” only for analysing the gas sample. Nevertheless, such sample must firstly be properly prepared. For this purpose, the Photon is always paired with powerful gas conditioner - PGD-100.
Photon communicates with, and controls PGD-100 dryer via 2.5m electric cable. Gas sample is delivered via 2.5m Tygon tube.

Ordering code:
see PGD-100 dryer section

Heated hose

4_2

THIS ELEMENT IS ORDERED SEPARATELY, YET IT IS ESSENTIAL TO WORK WITH ANALYSER!
Heated hose with heated gas filter supplies gas sample to the the analyser’s conditioning module.
Hose has M30x1 threaded connection to fix gas probe pipe. The other end has magnetic quick-coupler and electric connector to connect it with analyser.
Standard length of hose is 3m, it is possible to order other lengths of hoses.
Hose is provided with a carrying bag.

Ordering code:
see heated hoses section

Gas probe pipe

4_3

THIS ELEMENT IS ORDERED SEPARATELY, YET IT IS ESSENTIAL TO WORK WITH ANALYSER!
Exchangeable gas probe pipe mounted on the probe holder with M30x1 fastening.
It has thermocouple type K (in some configurations type S) for measurement of gas temperature and a threaded fixing cone. With the probe holder is a complete gas probe.
There are many probe pipes available. They differ in length and working temperature.
For work efficiency it is advised to own different probe pipes to be able to adjust to the measurement place.

Ordering code:
see gas probes section

Boiler’s inlet air temperature sensor

4_4

This PT500 temperature sensor on a 3m cable is used for measurement of the boiler’s inlet air. It is optional equipment. The sensor has to be connected to the Temp. Amb. socket. If this sensor is not connected Photon assumes the boiler’s inlet air temperature to be equal to the temperature measured with the NTC2k7 sensor installed in the device’s lid.

Ordering code:
Z40P-SENS-TEMP – sensor PT500 with 3m long cable

Temperature sensor for thermal stabilisation

4_5

This NTC2k7 temperature sensor with a 300mm cable is used for measurement of the surrounding air temperature. It helps to set the optimal target temperature for Photons thermal stabilisation. The sensor is connected to the Temp. Aux socket (in some units the socket is without label). The head of NTC2k7 sensor is installed in analyser's lid. For calculations, where ambient temperature is required, Photon uses readings from PT500 3m sensor (boiler's inlet air temperature sensor). In case of absence of this PT500 sensor, readings from NTC2k7 are being used.

Ordering code:
ZPH2-SENS-NTC – sensor NTC2k7 with 300mm long cable (grey)

Pitot tube

4_6

Pitot tube is used for indirect measurement of gas flow velocity (measurement with the analayser’s differential pressure sensor).
A few lengths of tubes are available. Pitot tube has 2m gas tubings to connect it with the analyser.

Ordering code:
Z00-PITOT-5002 – 500mm tube with connecting hoses
Z00-PITOT-8002 – 800mm tube with connecting hoses

Analogue outputs module

4_7

Optional module with 8 current and 8 voltage galvanically separated outputs. Installed into the device’s lid. Connected to the USB socked of Photon

Ordering code:
ZPH2-ANA-OUT

Analogue inputs module

4_8

Optional module with 8 current and 8 voltage inputs. Installed into the device’s lid. Connected to the USB socked of Photon

Ordering code:
ZPH2-ANA-IN

Martel portable printer with USB cable

4_9

Small, portable, battery operated printer for work with Photon analyser. Must be connected to Photon USB socket

Ordering code:
MPH-PRINT1 – Martel MCP-8810, thermal printer with USB interface
ZPH2-PRINTER-USB-KAB – USB cable for connecting the printer to analyser

Photon ↔ PGD-100 electric communication cable

4_10

2.5m communication cable for connecting the PGD-100 gas dryer to the Photon analyser. Spare part for Photon.

Ordering code:
ZMPH-KAB-RS232

Photon ↔ PGD-100 gas tube

4_11

2.5m long gas hose for connecting the PGD-100 gas dryer to the Photon analyser. Quick couplers on both ends. Spare part for Photon.

Ordering code:
Z10-GAS-CON-02
