maMoS – modular stationary gas analyser

Small in size, yet very skilful analyser – it has the best capabilities/price ratio. maMoS is our alternative for large, intricate CEMS systems, as it does not fall behind them concerning functionality and abilities, and is far ahead in terms of expenses.
It has modular construction, and many add-ons, that makes it easy to adjust to a very specific, individual application.
Powerful PC software allows to adjust many aspects of the work with the analyser very individually (work schedule, analogue outputs' behaviour, data presentations, and more...)

BROCHURE | DOWNLOADS

Main features

  • Standard configuration consists up to 6 sensors (NDIR and/or electrochemical).
  • Up to 8 sensors in an extreme, unique configuration.
  • NEW option: Large display with backlight, 4 lines x 20 characters
  • Different types of gas dryers to fit the customers needs.
  • Compact, Split and Twin split configurations.
  • Data-logger with SD card for results’ collection.
  • Analogue outputs (both current and voltage) to control external devices.
  • Digital and analogue inputs to pass signals from external devices, to trigger maMoS actions.
  • Communication with PC via different interfaces (USB, LAN, RS485 and MODBUS).
  • Different work modes to select from (continuous measurements, work with scheduler, measurements triggered with digital input, “work in-turns” - allows to measure from two different sources, and more...).
  • Powerful PC program to adjust the analyser's settings and to view the results.
  • Rich offer of add-ons and accessories.
  • NEW option: Possibility to work with heated hoses. Standard lengths: 3m 5m, 8m for 115VAC and 230VAC supply. Other hoses upon request.
  • NEW option: Possibility to work with programmable logic controllers (i.e. Siemens S7-1200) via modbus RTU.

Compact vs split configuration

Compact configuration

1_1

Compact configuration - analyser with gas dryer on a common mounting plate, all installed near the measurement place

Split configuration

1_2

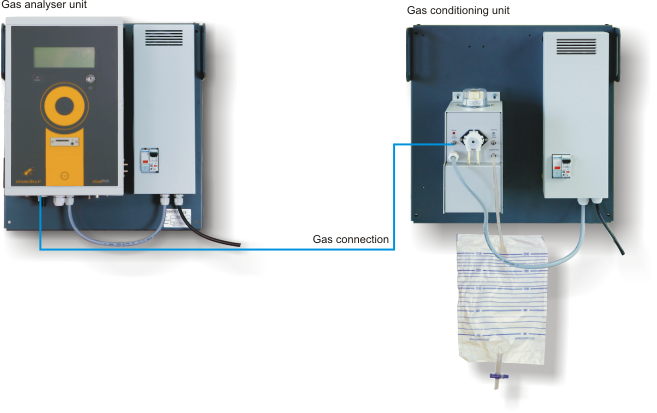

Split configuration - analyser and gas dryer are installed on separate mounting plates, each equipped with its own power supply module.
Gas dryer is installed near the measurement place, analyser can be installed in a distance from the dryer (in the operation convenient place). Analyser can be far away from the dryer, as the gas in the between connection is suitably prepared for measurement.

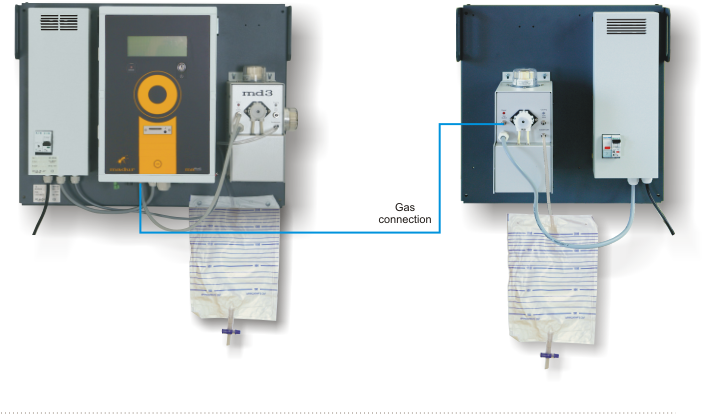

Twin-split configuration with one dryer mounted on a separate plate.

1_2a

Twin split configuration - this version is based on compact configuration, but one MD3 dryer with its own power supply is added on a separate mounting plate.
Allows to perform measurements from two different locations (each dryer is installed near the measurement place). maMoS measures in turns - one cycle per location.

Twin split configuration - both dryers on separate plates

1_3

Twin split configuration - analyser and two gas dryers, each on its own mounting plate, each equipped with a power supply module.
Allows to perform measurements from two different locations (each dryer is installed near the measurement place). maMoS measures in turns - one cycle per location.

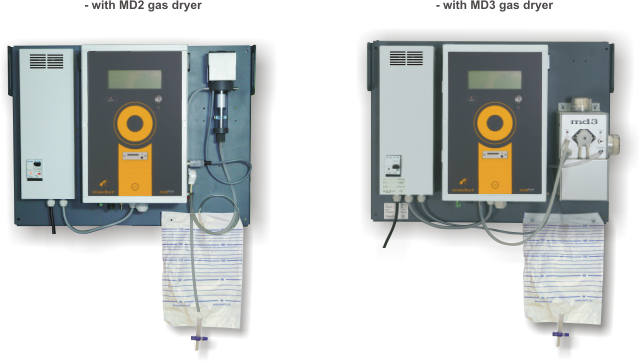

Complete and ready to operate maMoS unit

Drawing shows analyser in a compact configuration with a MD3 condensation dryer.

1_4

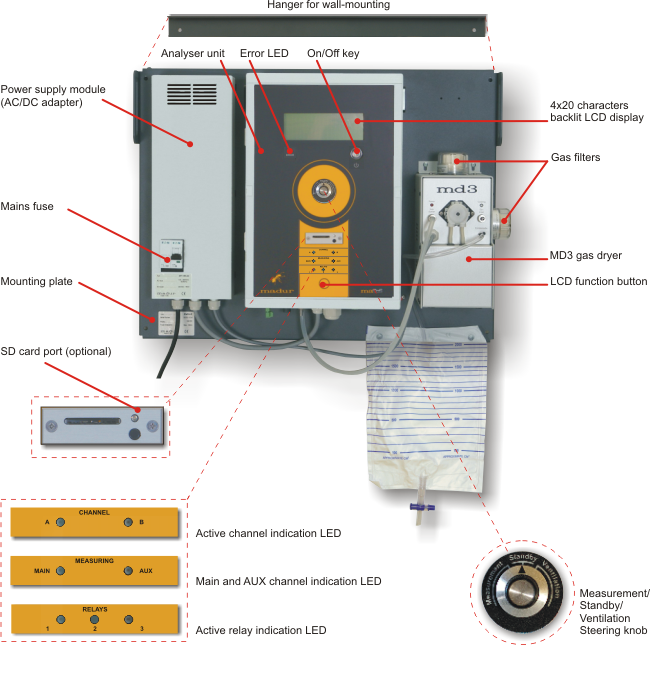

Gas and electric connectors (analysers bottom view)

Connection panel for the standard configuration with single gas channel

1_5

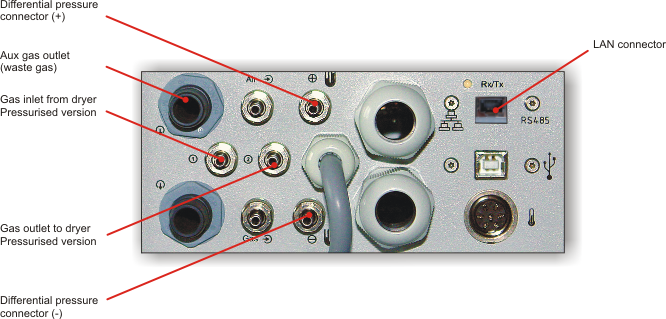

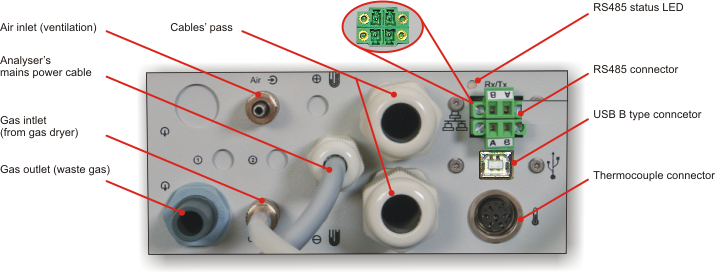

Other connections that can be found in the analyser

1_6

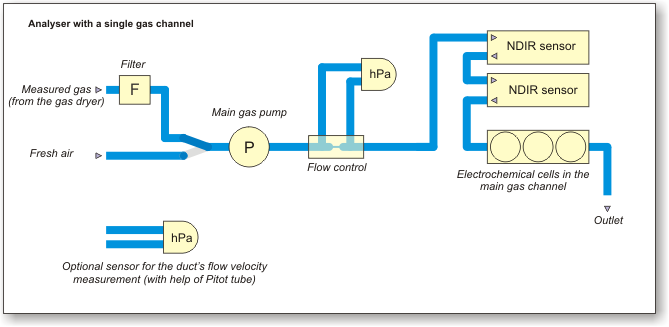

Configurations of the analyser’s gas channel

1_7

Analyser with a single gas channel is basic configuration of the device

1_8

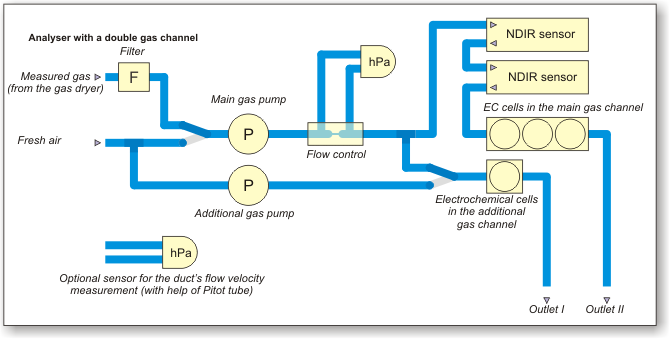

The second (additional) gas channel is enabled for shorter time during the measurement phase. The additional gas channel is dedicated for the ”fragile” sensors, where they are protected against too long exposure to the gas. This way the life-time of the fragile sensors is prolonged.
Bio-measurement is a typical application for the double gas channel configuration - then the primary gas channel holds sensors CO2, CH4, O2, and the additional gas channel holds the H2S sensor that is recognised as a fragile one.

1_9

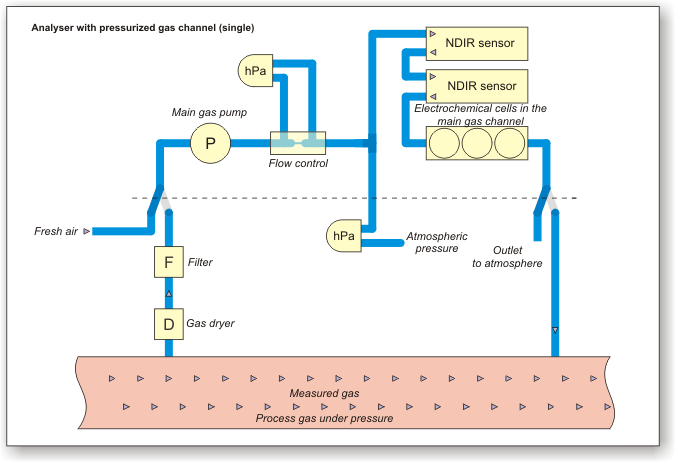

Analyser designed to work with overpressure with a single gas channel. Configuration can be used in installation with slight overpressure (<1.8bar)

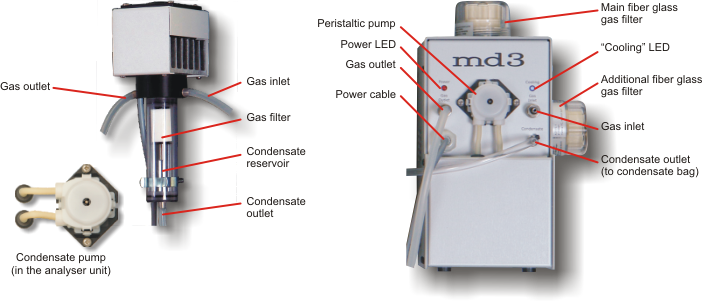

MD2 & MD3 gas dryers

Dryers

Example PC programme screenshots

PC

Main features

  • IP55 cabinet for maMoS and MD3 provides better protection in harsh enviroment.
  • Available with the same sensor and equipment configuration as regular maMoS.
  • Build-in ventilation system (option).
  • Cabinet available also with climate control module or without ventialtion.
  • Single or dual filtration system for protection from toxic gasses. Filter can be used with various absorbent (e.g. from Purafil).
  • Cabinet features high quality steel construction with glazed door.

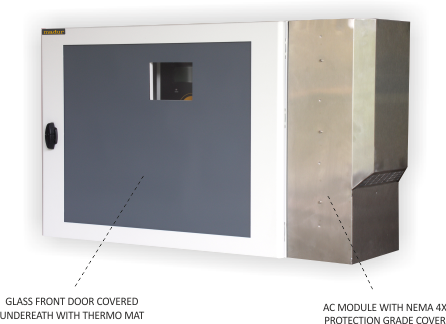

Example configuration

Example configuration with AC module

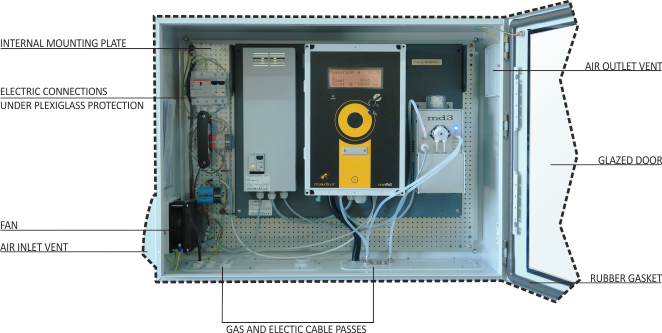

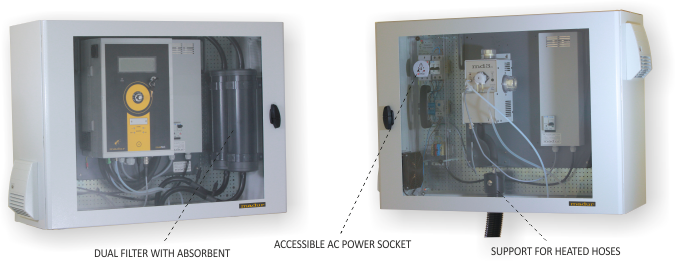

Inside the cabinet

Cabinet parameters

Dimensions with air vents (W x H x D) 92 cm * 60 cm * 30 cm
Dimensions with AC module (W x H x D) 102 cm * 60 cm * 30 cm
Weight 25,5kg cabinet + weight of the device
Door type
Glazed
Security glass
Color Grey RAL 7035
Installation type Wall-mounted
Lock type 3 points lock, 3mm double-bar
IP rating
IP55 (NEMA 3)
Accessibility Front
Operating conditions for analyser
in IP55 cabinet with ventilation
max. ambient temp. 35°C, out of direct sunlight
Storing temperature 0°C ÷ 55°C
Ventilation fan
120mm * 120mm
55m3/h
40dBA
IP55

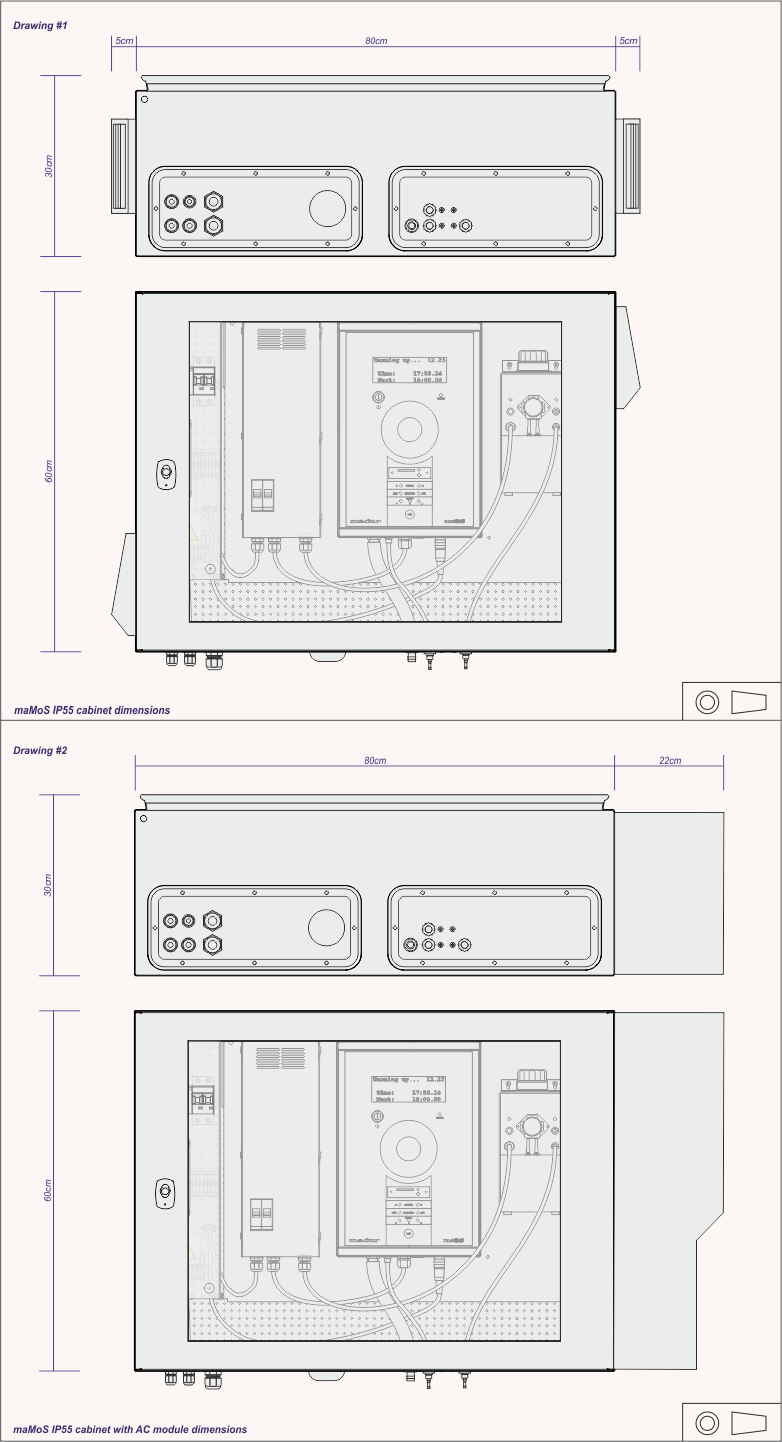

Drawings

1. General parameters – analyser unit

Dimensions (W x H x D) 240mm x 360mm x 160mm
Weight (depends on equipment) 4kg ÷ 5kg
Casing's material ABS
Protection grade IP20
Mounting plate: dimensions (H x W) | material | weight 596mm x 450mm | aluminium | 1.9kg
Operating conditions T: 10°C ÷ 50°C, RH: 5% ÷ 90% (non-condensing)
Storing temperature 0°C ÷ 55°C
Power consumption (analyser unit only) 30W max
Data-logger: type | size | number of results SD flash card | max 4GB | practically unlimited
Display: type | parameters Backlit LCD | 20 characters x 4 lines
Gas pump: type | max gas flow | standard gas flow Diaphragm | max 2l/min | 1.5l/min (90l/h)
Maximal extraction point pressure: Atmospheric ±200hPa
Current analogue outputs 4 outputs 0mA ÷ 20mA or 4mA ÷ 20mA
Voltage analogue outputs 4 outputs 0V ÷ 5V or 0V ÷ 10V
Digital inputs 2 inputs, TTL levels, floating = high level
Digital outputs 1 open collector output + 2 SPDT relays (optional)
Computer communication interface B type USB socket

2. General parameters – power supply unit

Dimensions (W x H x D) 360mm x 130mm x 56mm
Weight (depends on equipment) 1.4kg
Casing's material aluminium
Mounting plate Power supply is mounted on common plate with analyser unit
Operating conditions T: +10°C ÷ +50°C, RH: 5% ÷ 90% (non-condensing)
Storing temperature -20°C ÷ +55°C
Input voltage 100 ÷ 240V AC 50/60Hz
Output voltage 24V DC / 6.3A | 150W
Output current 6.3A max
Mains fuse 6A
Cable pass 2 pcs PG-9

3. Gas dryer - MD2 gas dryer

Dimensions (W x H x D) 211mm x 74mm x 82mm
Weight 450g
Drying method Water condensation by rapid cooling down
Cooler type Based on Peltier cooling element with fan (7VDC supply)
Cooling temperature Down to +4°C electronically stabilised
Dew point of outlet gas 8°C below the temperature of inlet gas.
Ready to operate after 10 minutes
Operating conditions T: 0°C ÷ 35°C, RH: 5% ÷ 90% (non-condensing)
Storing temperature -20°C ÷ +60°C
Maximum gas flow for efficient drying
(at inlet gas temp. 100°C and RH 100%)
40l/h
Gas filter Integrated, with condensate reservoir and replaceable insert
Filter insert: length | ID | OD | material | pore size 32mm | 15mm | 20mm | PE | 5µm
Condensate removal With peristaltic pump installed in analyser's body
Peristaltic pump capacity 38ml/min
Power supply Via maMoS (through 15-pin D-SUB connector)
Power consumption 9W

4. Gas dryer - MD3 gas dryer

Dimensions (W x H x D)
Without filters: 110mm x 205mm x 160mm
With Filters: 145mm x 240mm x 160mm
Weight 1790g (single filter version)
Drying method Water condensation by rapid cooling down
Cooler type Based on Peltier cooling element with fan (12VDC supply)
Cooling temperature Constant, about +1°C, output gas dewpoint about +4°C
Ready to operate after 5 minutes
Operating conditions T: 0°C ÷ 50°C, RH: 5% ÷ 90% (non-condensing)
Storing temperature -20°C ÷ 60°C
Maximum gas flow for efficient drying
(at inlet gas temp. 100°C and RH 100%)
100l/h
Gas filters: quantity | material 1 (optionally 2) | PA – body, PC – cover, viton – sealing
Filter insert: length | ID | OD | material | pore size 42mm | 26mm | 32mm | glass fibre | 2µm
Power supply Standard: via maMoS power supply (through 3-wire power cable)
Standalone version via external supply module: 85V ÷ 264V AC / 24V DC
Condensate removal With built-in peristaltic pump
Peristaltic pump capacity 38ml/min
Power consumption 30W

5. Measurements of gas components

Table below shows the combination of all sensors/ranges. Please mind that the maximum possible gas sensors number in a device is 8 – see ordering guide.

Component Method Range | resolution Accuracy Time (T90) Conformity
O2 – Oxygen Electrochemical, partial pressure 20.95% | 0.01% ± 0.2% abs. or 5% rel. 45 sec ISO 12039,
CTM-030
O2 – Oxygen Electrochemical, partial pressure 25.00% | 0.01% ± 0.2% abs. or 5% rel. 45 sec ISO 12039,
CTM-030
O2 – Oxygen Electrochemical, partial pressure 100.00% | 0.1% ± 0.2% abs. or 5% rel. 45 sec ISO 12039,
CTM-030
O2 – Oxygen Paramagnetic sensor 25% | 0.01% ± 0.2% abs. or 5% rel. 45 sec EN 14789, OTM-13
O2 – Oxygen Paramagnetic sensor 100% | 0.1% ± 0.2% abs. or 5% rel. 45 sec EN 14789, OTM-13
CO – Carbon monoxide Electrochemical sensor 4 000ppm | 1ppm ± 5ppm abs. or 5% rel. 45 sec ISO 12039,
CTM-030
CO – Carbon monoxide Electrochemical, with H2 compensation 4 000ppm | 1ppm ± 5ppm abs. or 5% rel. 45 sec ISO 12039,
CTM-030
CO – Carbon monoxide Electrochemical sensor 20 000ppm | 1ppm ± 5ppm abs. or 5% rel. 45 sec ISO 12039,
CTM-030
CO – Carbon monoxide Electrochemical, with H2 compensation 20 000ppm | 1ppm ± 5ppm abs. or 5% rel. 45 sec ISO 12039,
CTM-030
CO – Carbon monoxide Electrochemical sensor 10% | 0.001% ± 0.005% abs. or 5% rel. 45 sec ISO 12039,
CTM-030
CO – Carbon monoxide NDIR 10% | 0.01% ± 0.05% abs. or 5% rel. 45 sec EN 15058, Method 10
CO – Carbon monoxide NDIR 25% | 0.01% ± 0.05% abs. or 5% rel. 45 sec EN 15058, Method 10
CO – Carbon monoxide NDIR 50% | 0.01% ± 0.05% abs. or 5% rel. 45 sec EN 15058, Method 10
CO – Carbon monoxide NDIR 100% | 0.1% ± 0.5% abs. or 5% rel. 45 sec EN 15058, Method 10
CO2 – Carbon dioxide NDIR 5% | 0.01% ± 0.05% abs. or 5% rel. 45 sec ISO 12039, OTM-13
CO2 – Carbon dioxide NDIR 10% | 0.01% ± 0.05% abs. or 5% rel. 45 sec ISO 12039, OTM-13
CO2 – Carbon dioxide NDIR 25% | 0.01% ± 0.05% abs. or 5% rel. 45 sec ISO 12039, OTM-13
CO2 – Carbon dioxide NDIR 50% | 0.01% ± 0.05% abs. or 5% rel. 45 sec ISO 12039, OTM-13
CO2 – Carbon dioxide NDIR 100% | 0.1% ± 0.5% abs. or 5% rel. 45 sec ISO 12039, OTM-13
CH4 – Methane NDIR 1% | 0.01% ± 0.05% abs. or 5% rel. 45 sec
CH4 – Methane NDIR 5% | 0.01% ± 0.05% abs. or 5% rel. 45 sec
CH4 – Methane NDIR 10% | 0.01% ± 0.05% abs. or 5% rel. 45 sec
CH4 – Methane NDIR 25% | 0.01% ± 0.05% abs. or 5% rel. 45 sec
CH4 – Methane NDIR 50% | 0.01% ± 0.05% abs. or 5% rel. 45 sec
CH4 – Methane NDIR 100% | 0.1% ± 0.5% abs. or 5% rel. 45 sec
NO – Nitric oxide Electrochemical sensor 1 000ppm | 1ppm ± 5ppm abs. or 5% rel. 45 sec CTM-022
NO – Nitric oxide Electrochemical sensor 5 000ppm | 1ppm ± 5ppm abs. or 5% rel. 45 sec CTM-022
NO2 – Nitrogen dioxide Electrochemical sensor 1 000ppm | 1ppm ± 5ppm abs. or 5% rel. 60 sec CTM-022
NO2 – Nitrogen dioxide Electrochemical sensor 4 000ppm | 1ppm ± 5ppm abs. or 5% rel. 60 sec CTM-022
SO2 – Sulphur dioxide Electrochemical sensor 2 000ppm | 1ppm ± 5ppm abs. or 5% rel. 45 sec
SO2 – Sulphur dioxide Electrochemical sensor 5 000ppm | 1ppm ± 5ppm abs. or 5% rel. 45 sec
H2S – Hydrogen sulfide Electrochemical sensor 1 000ppm | 1ppm ± 5ppm abs. or 5% rel. 70 sec
H2S – Hydrogen sulfide Electrochemical sensor 10 000ppm | 1ppm ± 5ppm abs. or 5% rel. 45 sec
H2 – Hydrogen Electrochemical sensor 2 000ppm | 1ppm ± 10ppm abs. or 5% rel. 50 sec
H2 – Hydrogen Electrochemical sensor 20 000ppm | 1ppm ± 10ppm abs. or 5% rel. 70 sec
H2 – Hydrogen Thermal Conductivity Detector 10% | 0.1% ± 0.5% abs. or 5% rel. 45 sec
H2 – Hydrogen Thermal Conductivity Detector 25% | 0.1% ± 0.5% abs. or 5% rel. 45 sec
H2 – Hydrogen Thermal Conductivity Detector 50% | 0.1% ± 0.5% abs. or 5% rel. 45 sec
H2 – Hydrogen Thermal Conductivity Detector 100% | 0.1% ± 0.5% abs. or 5% rel. 45 sec
N2O – Nitrous oxide NDIR 2 000ppm | 1ppm ± 10ppm abs. or 5% rel. 45 sec ISO 21258
N2O – Nitrous oxide NDIR 5 000ppm | 1ppm ± 10ppm abs. or 5% rel. 45 sec ISO 21258
CHF3 – Fluoroform (Refrigerant R23) NDIR 2.5% | 0.01% ± 0.05 abs. or 5% rel. 45 sec
CL2 - Chlorine Electrochemical sensor 250ppm | 1ppm ± 5ppm abs. or 5% rel. 60 sec
VOC - Volatile Organic compounds PID - Photo Ionization Detector 100ppm | 1ppm ± 5ppm abs. or 5% rel. 120 sec Method 21
VOC - Volatile Organic compounds PID - Photo Ionization Detector 1 000ppm | 1ppm ± 5ppm abs. or 5% rel. 120 sec Method 21

6. Other measurements / calculated results

Variable Method Range | resolution Accuracy Time (T90)
Tgas – gas temperature K-type thermocouple -50 ÷ 1000°C | 0.1°C ± 2°C 10 sec
Tgas – gas temperature S-type thermocouple -50 ÷ 1500°C | 0.1°C ± 2°C 10 sec
Tamb – boiler intake air temperature PT500 resistive sensor -50 ÷ 100°C | 0.1°C ± 2°C 10 sec
Differential pressure Silicon piezoresistive pressure sensor -10hPa ÷ +40hPa | 1Pa (0.01hPa) ± 2Pa abs. or 5% rel. 10 sec
Differential pressure for measurement of gas flow velocity Silicon piezoresistive pressure sensor -10hPa ÷ +20hPa | 0.1Pa (0.001hPa) ± 2Pa abs. or 5% rel. 10 sec
Gas flow velocity Indirect, with Pitot tube & pressure sensor 1 ÷ 50m/s | 0.1m/s 0.3m/s abs. or 5% rel. 10 sec
Lambda λ – excess air number Calculated 1 ÷ 10 | 0.01 ± 5% rel. 10 sec
qA – stack loss Calculated 0 ÷ 100% | 0.1% ± 5% rel. 10 sec
Eta η – combustion efficiency Calculated 0 ÷ 120% | 0.1% ± 5% rel. 10 sec

Drawings

2_1

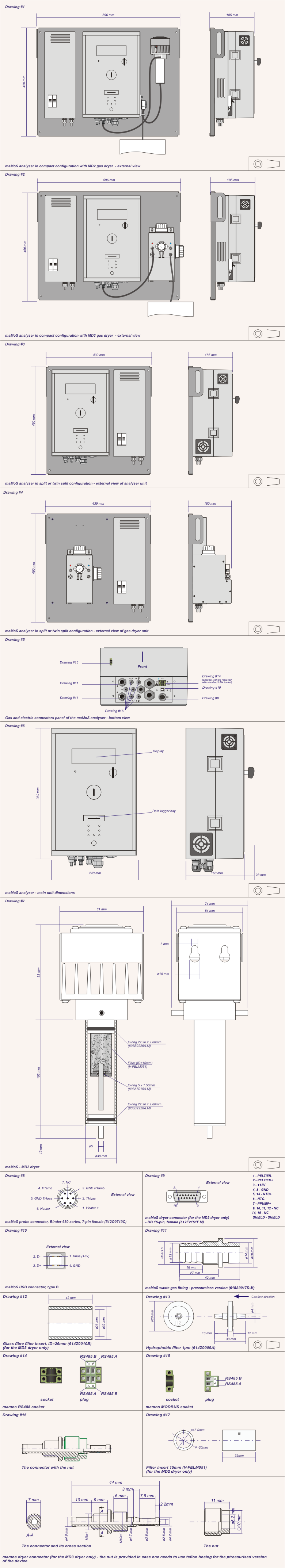

Hereby tool helps to configure, in few simple steps, ready to measure analyser. It allows to select main structural components, like gas dryer, gas sensors, etc. Some elements, like probe pipes are to be selected separately. This mini-configurator, generates a list of madur codes that identifies the selected configuration. Customer may add own comments and requests. Device configuration has to be verified by pressing the Refresh button in the Order Summary section. Order summary can be send to our sale engineers for validation and in order to obtain price offer.


Presenting prices principles

Analyser’s standard equipment supplied along with the device.

  • maMoS gas analyser on a mounting plate
  • Power supply unit that converts mains supply 115VAC or 230VAC to 24VDC for maMoS with power plug
  • USB communication cable (5m)
  • 8 analogue outputs (4x current, 4x voltage)
  • 2 digital inputs for triggering maMoS behavior
  • 7-pin connector for Tgas probe (thermocouple connection)
  • Software CD with PC programmes and user guides
  • 4 wall plugs to attach mounting plate
  • condensate bag for water collection
  • 2 maMoS igniton keys

Optional equipment for currently manufactured mamos analyser

MD2 gas dryer

4_1

THIS ELEMENT IS ORDERED SEPARATELY, YET IT IS ESSENTIAL TO WORK WITH ANALYSER!
MD2 gas dryer – economy class Peltier cooler unit - basic equipment of the maMoS monitor.

Ordering code:
ZMAM-DRYER-MD2

MD3 gas dryer

4_2

THIS ELEMENT IS ORDERED SEPARATELY, YET IT IS ESSENTIAL TO WORK WITH ANALYSER!
High efficiency gas dryer based on the Peltier cooling element. Equipped with 1 or 2 microfibre filters. Replaces the basic MD2 dryer.

Ordering code:
ZMA3-DRYER-MD3S – MD3 dryer with 1 filter
ZMA3-DRYER-MD3S2 – MD3 dryer with 2 filters

MD3 gas dryer with power supply

4_3

THIS ELEMENT IS ORDERED SEPARATELY, YET IT IS ESSENTIAL TO WORK WITH ANALYSER!
MD3 gas dryer with its own power supply module. Can work as a part of maMoS analyser (in split or twin-split configurations), or as a standalone device.

Ordering code:
M10-00001

Stationary gas probe

4_4

Gas probe designed specially for stationary purposes. Probe is available in different lengths and is equipped with suitable holder (different types are available).
Optionally it may also be equipped with:

  • Thermocouple for measurements of gas temperature.
  • Sintered stainless-steel filter (cleanable) - especially recommended when dealing with high concentration of dust and soot.
  • ”Blow-back” cleaning option - valve that allows to switch between measured gas and the compressed air inlet that is used for cleaning the sintered filter.

Ordering code:
see stationary probe ordering guide

Pitot tube

4_5

Pitot tube is used for indirect measurement of gas flow velocity (measurement with the analayser’s differential pressure sensor).
Few length of tubes are available. Pitot tube has 2m gas tubings to connect it with the analyser.
It may be provided with a suitable holder for stationary purposes

Ordering code:
Z00-PITOT-5002 – 500mm tube with connecting hoses
Z00-PITOT-8002 – 800mm tube with connecting hoses

Heated filter

0

Heated filter is installed right after the gas probe. It is best when it is paired with heated hose to prevent vapour from condensing.

Ordering code:
see heated filter section

USB communication cable

4_7

Standard USB type B cable that allows connection between a computer and mamos analyser. Length-5m

Ordering code:
563B0001B

Ethernet / WiFi communication interfaces

4_8

Optional interface allows to communicate with maMoS analyser within LAN network either via cable or wirelessly with help of special WiFi adapter.

Ordering code:
ZMA3-ADAP-WIFI

Optional equipment for older versions of mamos analyser

RS232C to USB converter

4_9

2.5m cable that allows to connect the analyser (its RS232C port) with USB port in PC computer (especially valuable when PC is not equipped with COM port).

Ordering code:
Z40P-USB-ADAP

Bluetooth communication module

4_10

Module connected to the analyser’s RS232C port, allows to communicate with PC computer over Bluetooth protocol.

Ordering code:
Z40P-BLUE-TOOTH

msg
msg

Please write below the new quantity.

New value:
X
qqq

X
Title:

General information


madur purchase rules


Service


Dealers


Downloads available only after logging in

TeamViewer remote support software.

Clicking this button will start the download/initialisation process of the program.

More info available in Online support.

Login or sign up for madur online account. Registration will enable you to see products prices.

Talk to our specialists. Click this button and fill in the appearing form. We will contact you at our earliest convenience.

Central European Time
